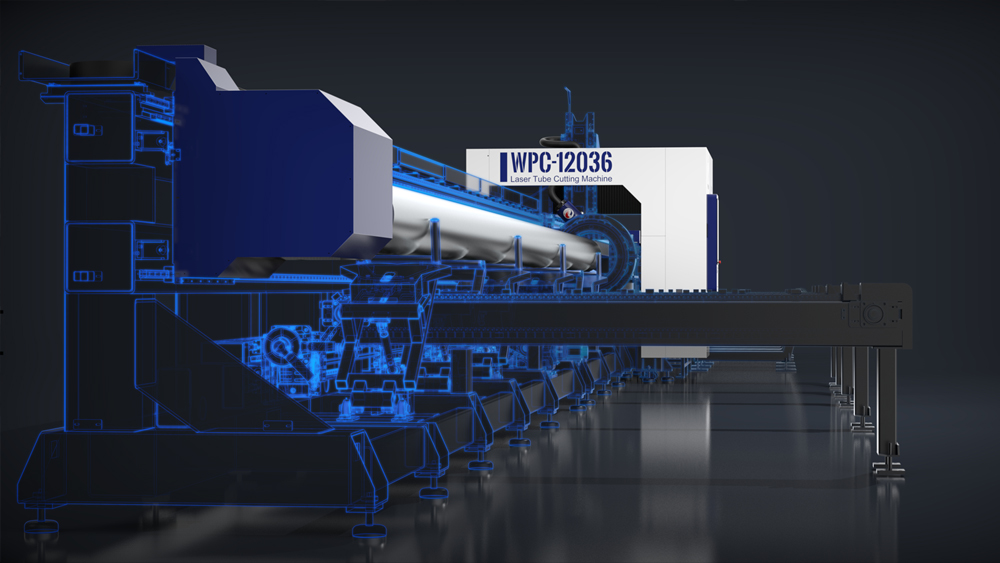

WPC CE Series Laser tube cutting machine

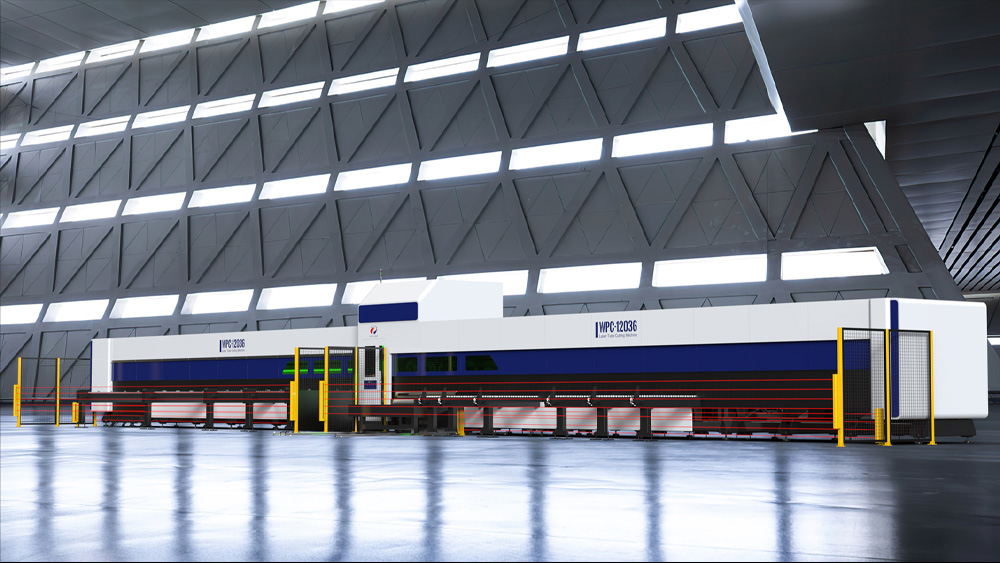

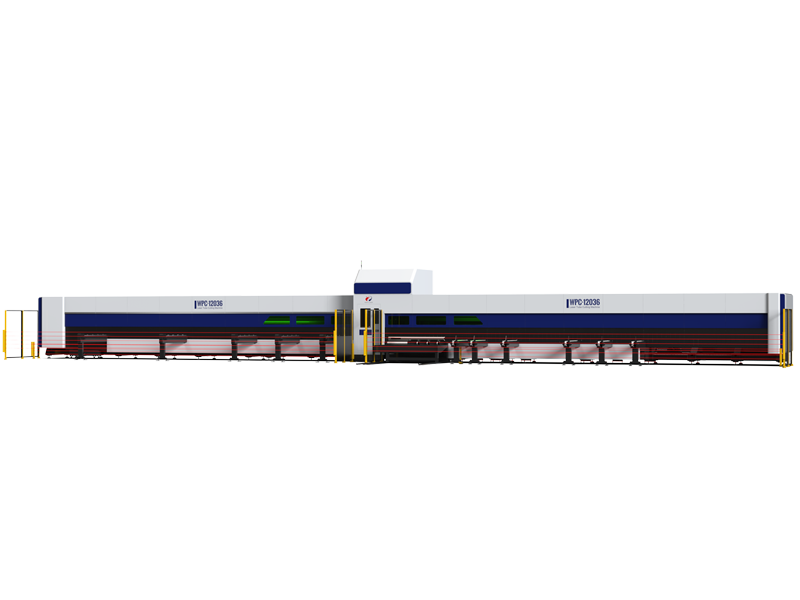

WPC Series Laser tube cutting machine

The WPC series laser tube cutting machine is designed for cutting heavy-duty tubes. It adopts a customized large mouth and high load-bearing side-hanging chuck, with a maximum load capacity of 1.2 tons. The machine is equipped with a standard semi-automatic loading system. And the loading support is equipped with a large clamping force fixture to ensure the centering of the tube loading. The loading side is supported by a servo-controlled floating supporter, and the unloading side is supported by a servo-controlled flat floating supporter. The bevel cutting function is optional. Complies with CE/UL design standards of Europe and the U.S., fully sealed cutting area, with a triple safety interlock to ensure absolute safety for electromechanical and laser.

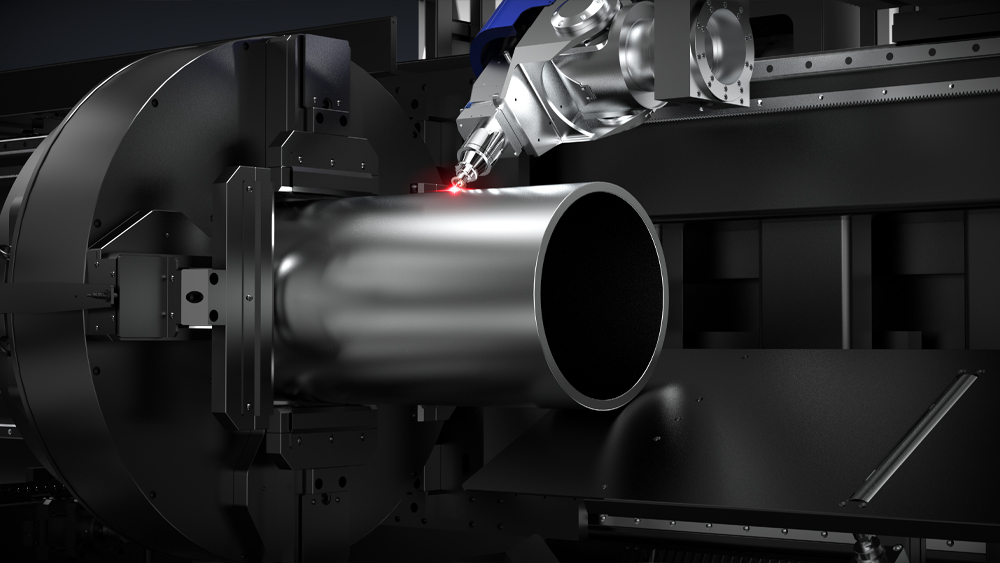

Bevel Cutting

Optional bevel cutting function.

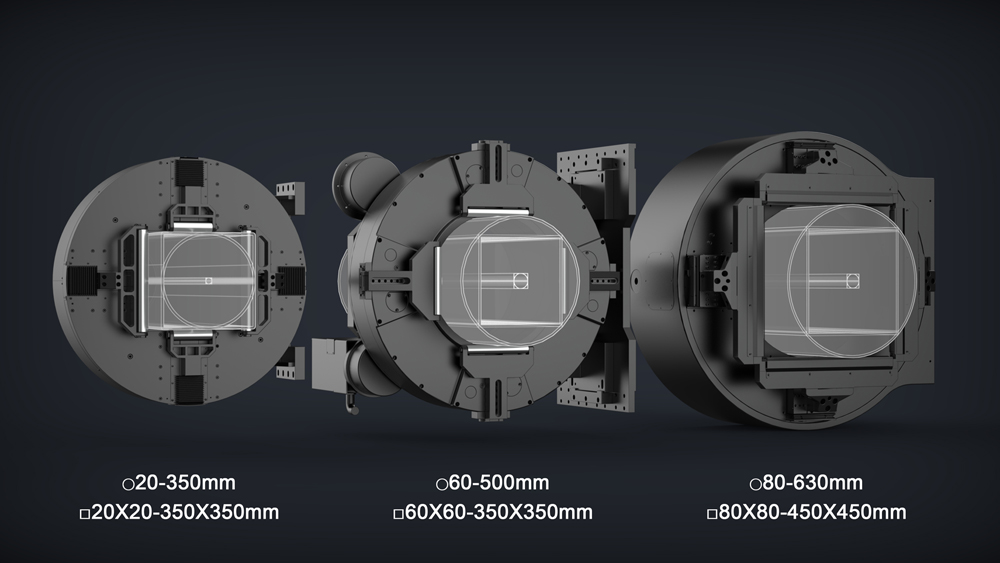

Large Cutting Range

360mm/ 500mm/ 650mm chuck.

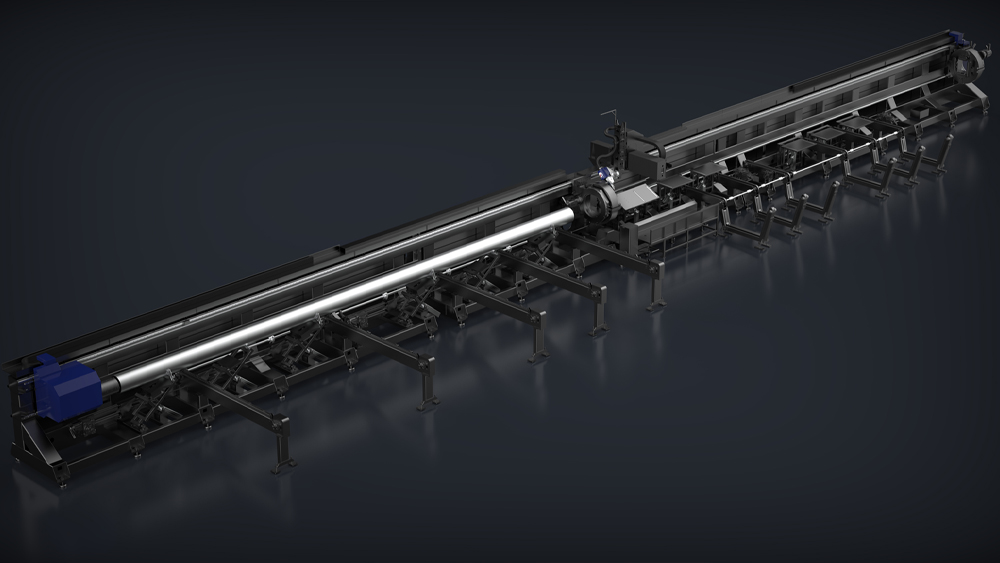

Side-mounted Bed Structure

Number of bed reinforcement ribs: 100+

Max load-bearing: 3 tons

Follow-up Flap Unloading

More sensitive, more stable,  more precise.

Servo Follow-up Support

Follow-up roller support/ intelligent centering/ more accurate/ more stable.

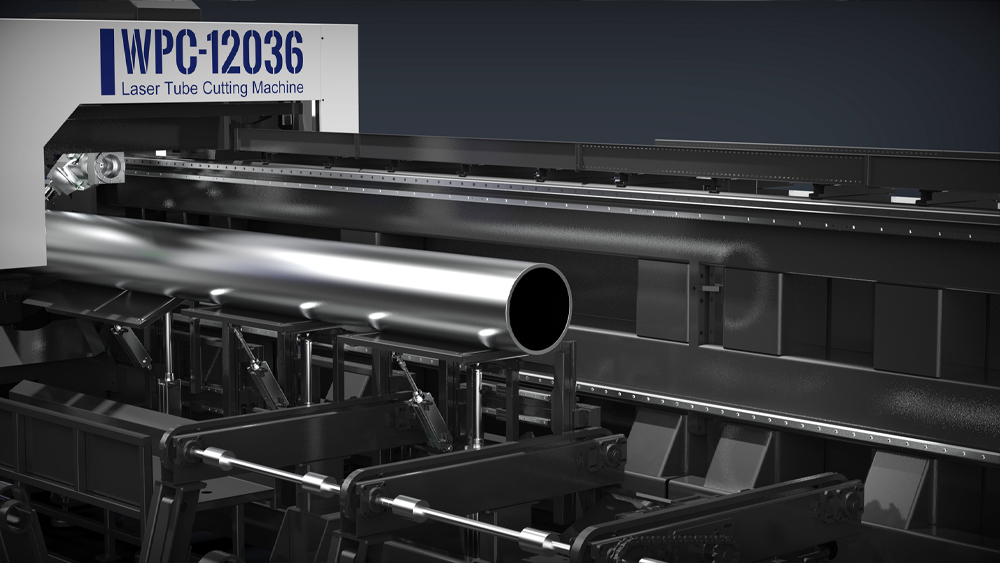

Semi-automatic Loading and Unloading

Automatic loading and unloading of heavy pipes,reducing costs and increasing effciency.

Operation software

■The latest version of Smart Manager is an European CNC software that can integrate with Italian CNC systems. Equipped with a powerful laser cutting database, the laser cutting parameters can be adjusted in real-time to achieve optimal cutting quality.

■The new algorithm enables faster response.

■It can be set with 15 layers of cutting parameters and 25 layers of perforation methods.

Cutting sample

Certificate
