TK Series deburring machine removes laser cut slag, smooths contours, and rounds edges.
Sanding Brush Speed :
7.5m/sWorking Width :
800mm/1000mm/1300mmMAX.POWER :
No Magnetic-13/13/17.5kwe / Magnetic-18KW/17KW/21.5KWWorking Thickness :
No Magnetic-0.5-100mm / Magneti-2-100mmRated Voltage :
AC 380V/50HzConveyor Speed :
0.8-4m/min (frequency control)Compressed Air :
0.6-0.8MpaWeight :
2000kg/2200kg/3000kgSanding Belt Speed :

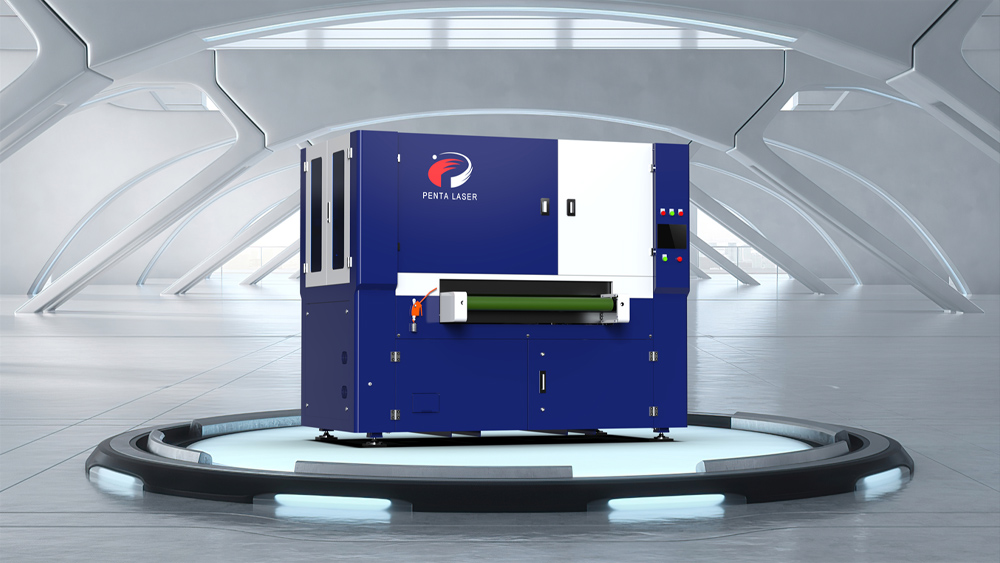

8-20m/s (frequency control)TK Series Deburring Machine
The TK Series deburring machine is designed to efficiently remove both soft and hard burrs from contour edges, including internal and external rounding. It features memory storage for process parameters, intelligent maintenance reminders, and a dynamic balance system for the sanding belt. The machine also offers intelligent perception protection and optional automatic abrasive compensation and replacement reminders, ensuring consistent performance and minimizing downtime.
Feature

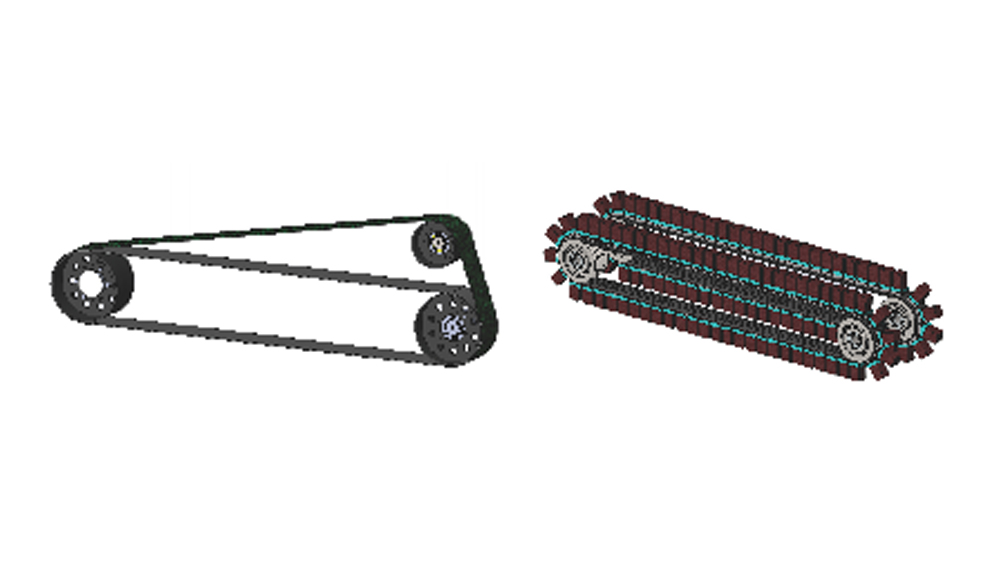

Station Combination
Combination of triangular sanding belt (T)+block-shapedsanding brush(K).
Polishing sample
Certificate
